TBox - From Ovarro Connecting Technologies
With 30+ years of automation experience and more than 350,00 installations worldwide the TBox family of solutions offers users an extremely flexible and powerful "all-in-one" solution for automation and control systems for industrial applications.
TBox uniquely supports a broad range of core functionality which quickly and efficiently solve common and advanced industrial automation, control and monitoring, IoT and IT challenges. TBox Solutions
combine alarm notification, data logging, integral web server, IP telemetry, and programmable automation in a single, highly secure ruggedized package:
- Complete Security Suite: All TBox devices and connected assets are protected by a state-of-the-art cyber security suite with authentication, encryption, firewall, SSL/TLS, HTTPS, SMTPS SFTP/FTPS and VPN.
- Data Logging and Reporting: Data log up to 32 GB of historical, event and alarm data right on the device. Produce and download reports on an as needed basis, or schedule and push reports to historians, databases, .CVS/.XLS files, HTTP/ FTP(s) and other destinations automatically.
- Alarm Management: Define alarm groups, severities and historical logging on the RTU to provide historical audit trails for reporting and notification.
- Alarm Notification: Push notification messaging via e-mail, FTP, and SMS text to notify users of alarms and Realtime variables when they happen.

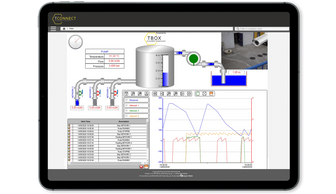

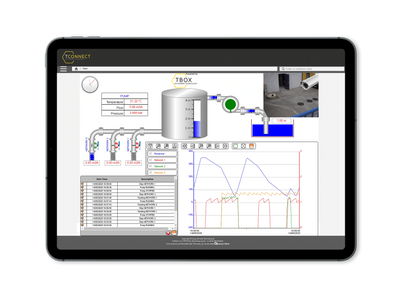

- Integral HMI with Web Server: Don't have a full blown SCADA/HMI? No problem! Access flexible operator interfaces right from the TBox device with the built in web server providing "mini-SCADA" fucntionallity for technicians and operators.
- OPC-UA and MQTT: Built in support for industry standard OPC-UA and MQTT protocols for efficient communications to existing SCADA, MES, Cloud and other applications. No need to buy OPC-Servers or additional gateway devices!
- Downstream Industrial Protocols: Included support for a variety of industrial protocols (both ethernet and serial) including Modbus, EthernetIP, DNP3, IEC 60870-5, DF1, Fisher ROC, and many more.
- Programming and Automation: A flexible programming environment with familiar Ladder Diagram (IEC 61131-3 compliant), Basic (Structured Text) and Function Blocks provide expedite configuration of automation tasks and custom calculations for virtually any remote asset or process.
- Modular and Fixed I/O Options: If you need just a handful or hundreds of physical I/O Points TBox has the right sized solution - all at prices that provide the most bang for your buck in the industry today to provide the fastest return on investment possible.
Flexible right Sized Solutions
Modular System - TBox MS
Modular System - TBox MS
Modular System - TBox MS

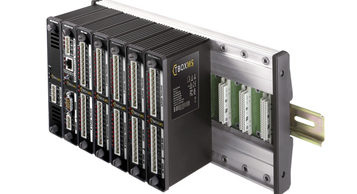

The TBox MS is a market leading modular remote control and automation solution that provides real-time remote access and control of your assets. With various I/O and communications card options, the TBox MS easily can scale from small 5 point systems to hundreds of I/O per rack.
All-in-One - TBox LT2
Modular System - TBox MS
Modular System - TBox MS
The powerful self-contained TBox LT2 integrates advanced automation, web server, alarm notification and data logging with Ethernet and wireless communications. It contains up to 24 I/O (16 DI/DO, 8 AI and optional 2 AO) which make it extremely flexible for a wide variety of applications.
Gateway - TBox TG2
Modular System - TBox MS
Remote IO - TBox RM2
The TBox TG2 contains all the same power and functionality of the LT2, but without IO. The TG2 is the perfect Gateway / Proxy, IoT Edge Device, Data Concentrator and protocol translation solution for systems of all sizes and architectures. Or use it with your existing system to log data, as an alarming system, HMI, and more!
Remote IO - TBox RM2
Programming / Configuration - TWinSoft
Remote IO - TBox RM2
The TBox RM2 is a compact remote I/O expansion module for use with the TBox MS or LT2 solutions, or with any other controller capable of speaking Modbus Protocol (Serial or Ethernet). The RM2 modules connect a wide variety of electrical, electronic and mechanical devices and sensors to computers over standard Ethernet networks.
VPN Management - TConnect
Programming / Configuration - TWinSoft
Programming / Configuration - TWinSoft
TConnect is a secure software package that simplifies remote access, configuration, monitoring and control of all TBox hardware. With TConnect you can access any TBox hardware connected to a GSM/ cellular network without the need for a fixed and costly IP address or a dynamic DNS. TConnect takes care of registration automatically, removing the need to manage a VPN network.
Programming / Configuration - TWinSoft
Programming / Configuration - TWinSoft
Programming / Configuration - TWinSoft
Designed with a Windows-style menu, TWinSoft is an easy-to-use and intuitive tool to configure TBox hardware. The wizard, simple dialogue boxes
and predefined variables allow users to rapidly
complete their applications and dynamically control communication, alarms, data logging and logic, locally or remotely, in complete security.
TWinSoft also includes WebForm Studio which allows users to create dynamic embedded web pages without any coding knowledge.
